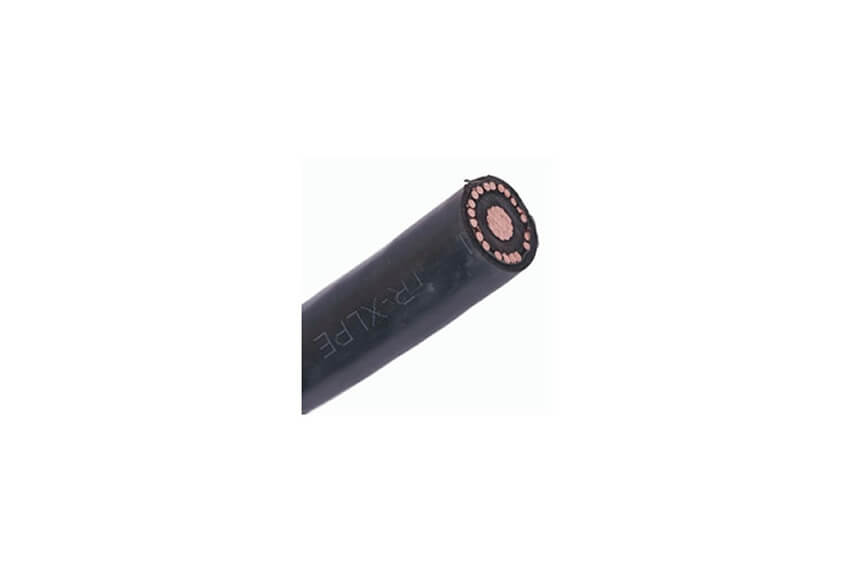

6/10kV 8.7/15kV 12/20kV 18/30kV CU/XLPE/CWS/PVC Single Core Power Cable (N2XSY Cable)

Applications

Medium voltage single core cable is suitable for use in power networks, in fixed installation outdoors in cable ducts or directly in the ground. Cable operational stability is enhanced because of very low dielectric loss factor, excellent insulation property of XLPE and firm bonding with conductor screen and insulation screen of semi-conductive material (extruded in one process), which makes it widely used in transformer stations, electric power plants and industrial plants.

Also Known As:

N2XSY Medium voltage cable, N2XSY Cable, YJSV Cable, 6/10kV 8.7/15kV 12/20kV 18/30kV CU/XLPE/CWS Armored/PVC Power Cable

6/10kV 8.7/15kV 12/20kV 18/30kV CU/XLPE/CWS/PVC Single Core Power Cable (N2XSY Cable)

CONSTRUCTION

1)Conductor: Copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor
2)Conductor screen: Non-metallic, semi-conducting compound
3)Insulation: Cross-linked polyethylene XLPE
4)Insulation screen: Non-metallic, semi-conducting compound
5)Metallic screen: copper wire and tape
6)Binder tape: Non-hygroscopic material
7)Outer sheath: Polyvinyl chloride PVC

ADDITIONAL STANDARDS

JYTOP’s Medium voltage N2XSY Cable (CU/XLPE/CWS/PVC) meets or exceeds the following Standards

IEC 60228 Conductors
IEC 60502-2 Power cables with extruded insulation and their accessories for rated voltages from 1kV(Um=1.2kV) up to 35kV(Um=40.5kV) – Part 2: Cables for rated voltages of 6 kV(Um=7.2kV) and 30 kV(Um=36kV)

6/10kV 8.7/15kV 12/20kV 18/30kV CU/XLPE/CWS/PVC Single Core Power Cable (N2XSY Cable) Specifications:

Get all the answers to the most frequently asked questions (FAQs) regarding 6/10kV 8.7/15kV 12/20kV 18/30kV CU/XLPE/CWS/PVC Single Core Power Cable (N2XSY Cable) chart,6/10kV 8.7/15kV 12/20kV 18/30kV CU/XLPE/CWS/PVC Single Core Power Cable (N2XSY Cable) sizes,6/10kV 8.7/15kV 12/20kV 18/30kV CU/XLPE/CWS/PVC Single Core Power Cable (N2XSY Cable) full form,6/10kV 8.7/15kV 12/20kV 18/30kV CU/XLPE/CWS/PVC Single Core Power Cable (N2XSY Cable) ampacity,6/10kV 8.7/15kV 12/20kV 18/30kV CU/XLPE/CWS/PVC Single Core Power Cable (N2XSY Cable) diameter and much, much more.
Medium voltage N2XSY Cable (CU/XLPE/CWS/PVC) manufactured by JYTOP meets or exceeds the requirements of all international standards like ASTM, AS, BS, CSA, DIN, IEC, NFC, SS -etc

6/10kV CU/XLPE/CWS/PVC Single Core Power Cable(N2XSY)

No. of cores and nominal cross section	Thickness of insulation	Cross section of screen	Thickness of sheath	Approx. overall diameter		Max. DC resistance of conductor（20℃）	Current carrying capacity	Current carrying capacity
(mm²)	(mm)	(mm²)	(mm)	(mm)		(Ω/km)	In air(A)	In ground(A)
1x25/16	3.4	16	1.8	21.8	720	0.727	170	155
1x35/16	3.4	16	1.8	22.9	829	0.524	197	187
1x50/16	3.4	16	1.8	24.0	969	0.387	236	220
1x70/16	3.4	16	1.8	25.7	1193	0.268	294	268
1x95/16	3.4	16	1.8	27.2	1462	0.193	358	320
1x120/16	3.4	16	1.8	28.7	1710	0.153	413	363
1x150/25	3.4	25	1.8	30.2	2060	0.124	468	405
1x185/25	3.4	25	1.9	32.0	2450	0.0991	535	456
1x240/25	3.4	25	2.0	34.7	3000	0.0754	631	526
1x300/25	3.4	25	2.1	36.9	3600	0.0601	722	591
1x400/35	3.4	35	2.2	40.2	4530	0.0470	827	662
1x500/35	3.4	35	2.3	44.1	5580	0.0366	949	744

8.7/15kV CU/XLPE/CWS/PVC Single Core Power Cable(N2XSY)

No. of cores and nominal cross section	Thickness of insulation	Cross section of screen	Thickness of sheath	Approx. overall diameter	Approx. weight	Max. DC resistance of conductor（20℃）	Current carrying capacity	Current carrying capacity
(mm²)	(mm)	(mm²)	(mm)	(mm)	(kg/km)	(Ω/km)	In air(A)	In ground(A)
1x25/16	4.5	16	1.8	23.8	800	0.727	160	180
1x35/16	4.5	16	1.8	24.8	913	0.524	197	188
1x50/16	4.5	16	1.8	26.1	1057	0.387	236	221
1x70/16	4.5	16	1.8	27.8	1288	0.268	294	271
1x95/16	4.5	16	1.8	29.4	1562	0.193	358	232
1x120/16	4.5	16	1.9	31.0	1831	0.153	413	366
1x150/25	4.5	25	1.9	32.5	2192	0.124	468	407
1x185/25	4.5	25	2.0	34.4	2585	0.0991	535	460
1x240/25	4.5	25	2.1	36.8	3162	0.0754	631	531
1x300/25	4.5	25	2.1	39.0	3752	0.0601	722	597
1x400/35	4.5	35	2.3	42.4	4703	0.0470	827	670
1x500/35	4.5	35	2.3	45.3	5761	0.0366	949	745

12/20kV CU/XLPE/CWS/PVC Single Core Power Cable(N2XSY)

No. of cores and nominal cross section	Thickness of insulation	Cross section of screen	Thickness of sheath	Approx. overall diameter	Approx. weight	Max. DC resistance of conductor（20℃）	Current carrying capacity	Current carrying capacity
(mm²)	(mm)	(mm²)	(mm)	(mm)	(kg/km)	(Ω/km)	In air(A)	In ground(A)
1x35/16	5.5	16	1.8	26.86	989	0.524	225	150
1x50/16	5.5	16	1.8	28.16	1136	0.387	270	180
1x70/16	5.5	16	1.9	30.06	1385	0.268	330	220
1x95/16	5.5	16	1.9	31.66	1664	0.193	400	265
1x120/16	5.5	16	2.0	33.26	1939	0.153	460	310
1x150/25	5.5	25	2.0	34.76	2304	0.124	520	350
1x185/25	5.5	25	2.1	36.66	2703	0.0991	585	400
1x240/25	5.5	25	2.1	38.86	3270	0.0754	680	465
1x300/25	5.5	25	2.2	41.26	3884	0.0601	775	535
1x400/35	5.5	35	2.3	44.46	4826	0.0470	885	615
1x500/35	5.5	35	2.4	47.56	5913	0.0366	1000	725

18/30kV CU/XLPE/CWS/PVC Single Core Power Cable(N2XSY)

No. of cores and nominal cross section	Thickness of insulation	Cross section of screen	Thickness of sheath	Approx. overall diameter	Approx. weight	Max. DC resistance of conductor（20℃）	Current carrying capacity	Current carrying capacity
(mm²)	(mm)	(mm²)	(mm)	(mm)	(kg/km)	(Ω/km)	In air(A)	In ground(A)
1x35/16	8.0	16	2.0	32.2	1255	0.524	238	172
1x50/16	8.0	16	2.0	33.4	1426	0.387	286	203
1x70/16	8.0	16	2.1	35.3	1691	0.268	356	246
1x95/16	8.0	16	2.1	37.1	2003	0.193	434	293
1x120/16	8.0	16	2.2	38.6	2286	0.153	500	332
1x150/25	8.0	25	2.2	40.6	2683	0.124	559	366
1x185/25	8.0	25	2.3	42.3	3096	0.0991	637	410
1x240/25	8.0	25	2.3	44.8	3703	0.0754	745	470
1x300/25	8.0	25	2.4	47.2	4334	0.0601	846	524
1x400/35	8.0	35	2.5	50.4	5329	0.0470	938	572
1x500/35	8.0	35	2.6	53.3	6447	0.0366	1065	725
