JYTOP is a leading manufacturer of SAC Cable Aluminum Spaced Aerial Cable in the field of power transmission and distribution
With over 30 years production experience and 15 years export experience, factory price without any third party. Can be customized your ideal size,meets or exceeds the requirements of all international standards like ASTM, AS, BS, CSA, DIN, IEC, NFC, SS -etc.
JYTOP's SAC Cable Aluminum Spaced Aerial Cable have been exported to many countries and regions such as the Middle Est, Africa, Asia Oceania, South America, North America etc., and have won praise from domestic and foreign customers.
In this page, we'll introduce SAC Cable Aluminum Spaced Aerial Cable and their advantages, applications, standards and frequently asked questions.
Application:
This kind of spaced aerial cable ( SAC cable) is used for aerial power transmission at 15/25/35 maximum system voltage. the phase to phase voltage is 10/20/33KV.

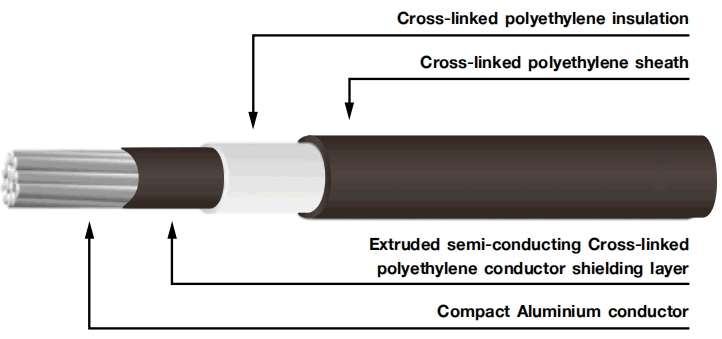

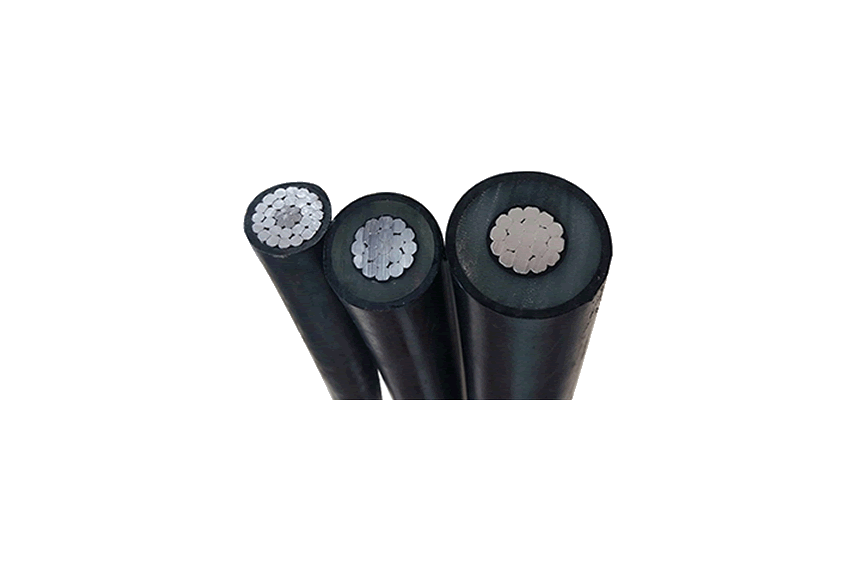

Conductor : Compact stranded hard drawn Aluminium wire.
Conductor shield : Semi-conducting cross-linked polyethylene.
Insulation : Cross-linked polyethylene (Natural)
Sheath : Track resistant cross-linked polyethylene (Black)
15 kV Spaced aerial cable PDITL / MEA / PEA
25 kV Spaced aerial cable TIS 2341-2555 / MEA / PEA
35 kV Spaced aerial cable TIS 2341-2555 / MEA / PEA
Insulated Cable Engineers Association (ICEA) S-121-733
Get all the answers to the most frequently asked questions (FAQs) regarding SAC Cable Aluminum Spaced Aerial Cable chart,SAC Cable Aluminum Spaced Aerial Cable sizes,SAC Cable Aluminum Spaced Aerial Cable full form,SAC Cable Aluminum Spaced Aerial Cable ampacity,SAC Cable Aluminum Spaced Aerial Cable diameter,SAC Cable Aluminum Spaced Aerial Cable manufacturers and much, much more.
Voltage rating :
15 kV phase to phase AC TESTING VOLTAGE : 27 kV for 5 minutes
25 kV phase to phase AC TESTING VOLTAGE: 38 kV for 5 minutes
35 kV phase to phase AC TESTING VOLTAGE: 49 kV for 5 minutes
Nominal cross – sectional area mm² | Minimum number of wire No. | Diameter of conductor (Approx.) mm | Thickness of insulation mm | Thickness of sheath mm | Overall diameter (Approx.) mm | Maximum DC. conductor resistance at 20°C Ω / km | Minimum insulation resistance at 15.6°C MΩ-km | Allowable ampacities in free air at 40°C ambient A | Cable weight (Approx.) kg / km |
|---|---|---|---|---|---|---|---|---|---|
35 | 6 | 6.9 | 1.91 | 1.91 | 16.0 | 0.868 | 1,820 | 151 | 232 |
50 | 6 | 8.0 | 1.91 | 1.91 | 17.5 | 0.641 | 1,612 | 187 | 291 |
70 | 12 | 9.8 | 1.91 | 1.91 | 19.0 | 0.443 | 1,445 | 231 | 358 |
95 | 15 | 11.4 | 1.91 | 1.91 | 21.0 | 0.320 | 1,284 | 281 | 451 |
120 | 15 | 12.9 | 1.91 | 1.91 | 22.5 | 0.253 | 1,152 | 324 | 552 |
150 | 15 | 14.1 | 1.91 | 1.91 | 24.0 | 0.206 | 1,070 | 375 | 639 |
185 | 30 | 15.8 | 1.91 | 1.91 | 25.5 | 0.164 | 980 | 433 | 763 |
240 | 30 | 18.3 | 1.91 | 1.91 | 28.0 | 0.125 | 874 | 525 | 953 |
Nominal cross – sectional area
mm² | Minimum number of wire
No. | Diameter of conductor (Approx.)
mm | Thickness of insulation
mm | Thickness of sheath
mm | Overall diameter (Approx.)
mm | Maximum DC. conductor resistance at 20°C Ω / km | Minimum insulation resistance at 15.6°C
MΩ-km | Allowable ampacities in free air at 40°C ambient A | Cable weight (Approx.)
kg / km |
|---|---|---|---|---|---|---|---|---|---|
35 | 6 | 6.9 | 3.18 | 3.18 | 21.0 | 0.868 | 2,580 | 149 | 363 |
50 | 6 | 8.0 | 3.18 | 3.18 | 22.0 | 0.641 | 2,314 | 186 | 432 |
70 | 12 | 9.8 | 3.18 | 3.18 | 24.5 | 0.443 | 2,100 | 229 | 509 |
95 | 15 | 11.4 | 3.18 | 3.18 | 26.0 | 0.320 | 1,887 | 279 | 615 |
120 | 15 | 12.9 | 3.18 | 3.18 | 27.0 | 0.253 | 1,712 | 321 | 729 |
150 | 15 | 14.1 | 3.18 | 3.18 | 29.5 | 0.206 | 1,600 | 371 | 826 |
185 | 30 | 15.8 | 3.18 | 3.18 | 31.0 | 0.164 | 1,477 | 429 | 959 |
240 | 30 | 18.3 | 3.18 | 3.18 | 33.5 | 0.125 | 1,328 | 520 | 1,170 |
Nominal cross – sectional areamm² |
Minimum number of wire No. |
Diameter of conductor (Approx.) mm |
Thickness of insulation mm |
Thickness of sheath mm |
Overall diameter (Approx.) mm |
Maximum DC. conductor resistance at 20°C Ω / km |
Minimum insulation resistance at 15.6°C MΩ-km |
Allowable ampacities in free air at 40°C ambient A |
Cable weight (Approx.) kg / km |
Standard packing m |
|---|---|---|---|---|---|---|---|---|---|---|
50 | 6 | 8.0 | 4.45 | 3.18 | 25.5 | 0.641 | 2,606 | 184 | 517 | 1,000/R |
70 | 12 | 9.8 | 4.45 | 3.18 | 27.5 | 0.443 | 2,375 | 227 | 599 | 1,000/R |
95 | 15 | 11.4 | 4.45 | 3.18 | 29.0 | 0.320 | 2,144 | 276 | 711 | 1,000/R |
120 | 15 | 12.9 | 4.45 | 3.18 | 31.0 | 0.253 | 1,952 | 318 | 831 | 1,000/R |
150 | 15 | 14.1 | 4.45 | 3.18 | 32.5 | 0.206 | 1,830 | 367 | 933 | 1,000/R |
185 | 30 | 15.8 | 4.45 | 3.18 | 33.5 | 0.164 | 1,694 | 425 | 1,073 | 1,000/R |
240 | 30 | 18.3 | 4.45 | 3.18 | 36.5 | 0.125 | 1,529 | 515 | 1,293 | 1,000/R |
